There are two types of MPC protocols, generic and specific. Generic protocols can compute arbitrary functions. Garbled circuits were generic protocols, since it can be used to compute any boolean circuits. In contrast, the summation protocol is a specific protocol that can only be used to compute a specific function. Note that generic protocols are not necessarily better, since specific protocols are much more efficient.

GMW Protocol

The Goldreich-Micali-Wigderson (GMW) protocol is a designed for evaluating boolean circuits. In particular, it can be used for XOR and AND gates, which corresponds to addition and multiplication in \Z_2. Thus, the protocol can be generalized for evaluating arbitrary arithmetic circuits.

We assume semi-honest adversaries and static corruption. The GMW protocol is known to be secure against any number of corrupted parties. We also assume that any two parties have private channels for communication.

The idea is secret sharing, where each party shares its input with other parties. The actual input is not revealed, and after the computation, each party holds a share of the final result.

The protocol can be broken down into 3 phases.

• Input phase: each party shares its input with the other parties.
• Evaluation phase: each party computes gate by gate, using the shared values.
• Output phase: each party publishes their output.

Input Phase

Suppose that we have n parties P_1, \dots, P_n with inputs x_1, \dots, x_n \in \braces{0, 1}. The inputs are bits but they can be generalized to inputs over \Z_q where q is prime.

Each party P_i shares its input with other parties as follows.

1. Choose random r_{i, j} \la \braces{0, 1} for all j \neq i and send r_{i, j} to P_j.
2. Set r_{i, i} = x_i + \sum_{i \neq j} r_{i, j}.

Then we see that x_i = \sum_{j = 1}^n r_{i, j}. Each party has a share of x_i, which is r_{i, j}. We have a notation for this,

[x_i] = (r_{i, 1}, \dots, r_{i, n}).

It means that r_{i, 1}, \dots, r_{i, n} are shares of x_i.

After this phase, each party P_j has n shares r_{1, j}, \dots, r_{n,j}, where each is a share of x_i.

Evaluation Phase

Now, each party computes each gate using the shares received from other parties. We describe how the XOR and AND gate are computed.

Evaluating XOR Gates

Suppose we want to compute a share of c = a + b. Then, since

[c] = [a] + [b],

each party can simply add all the input shares.

If y = x_1 + \cdots + x_n, then party P_j will compute y_j = \sum_{i=1}^n r_{i, j}, which is a share of y, [y] = (y_1, \dots, y_n). It can be checked that

y = \sum_{j=1}^n y_j = \sum_{j=1}^n \sum_{i=1}^n r_{i, j}.

Evaluating AND Gates

AND gates are not as simple as XOR gates. If c = ab,

c = \paren{\sum_{i=1}^n a_i} \paren{\sum_{j=1}^n b_j} = \sum_{i=1}^n a_ib_i + \sum_{1 \leq i < j \leq n} (a_ib_j + a_j b_i).

The first term can be computed internally by each party. The problem is the second term. P_i doesn't know the values of a_j and b_j. Therefore, we need some kind of interaction between P_i and P_j, but no information should be revealed. We can use an OT for this.

For every pair of parties (P_i, P_j), perform the following.

1. P_i chooses a random bit s_{i, j} and computes all possible values of a_ib_j + a_jb_i + s_{i, j}. These values are used in the OT.
2. P_i and P_j run a $1$-out-of-4 OT.
3. P_i keeps s_{i, j} and P_j receives a_ib_j + a_jb_i + s_{i, j}.

• If a_ib_j + a_jb_i is exposed to any party, it reveals information about other party's share.
• These are bits, so P_i and P_j get to keep a share of a_ib_j + a_jb_i. If these aren't bits, then s_{i, j} - a_ib_j - a_jb_i must be computed for inputs to the OT.
• Since a_j, b_j \in \braces{0, 1}, it is possible to compute all possible values, and use them in the OT. (a_j, b_j) will be used as the choice of P_j.

Output Phase

After evaluation, each party has a share of the final output, so the share is sent to the parties that will learn the output. These shares can be summed to obtain the final output value.

Performance

Addition is easy, but multiplication gates require n \choose 2 OTs. Thus the protocol requires a communication round among the parties for every multiplication gate. Also, the multiplication gates on the same level can be processed in parallel.

Overall, the round complexity is \mc{O}(d), where d is the depth of the circuit, including only the multiplication gates.

A shallow circuit is better for GMW protocols. However, shallow circuits may end up using more gates depending on the function.

Security Proof

We show the case when there are n-1 corrupted parties.¹ Let P_i be the honest party and assume that all others are corrupted. We will construct a simulator.

Let (x_1, \dots, x_n) be inputs to the function, and let [y] = (y_1, \dots, y_n) be output shares. The adversary's view contains y, and all x_j, y_j values except for x_i and y_i.

To simulate the input phase, choose random shares to be communicated, both for P_i \ra P_j and P_j \ra P_i. The shares were chosen randomly, so they are indistinguishable to the real protocol execution.

For the evaluation phase, XOR gates can be computed internally, so we only consider AND gates.

• When P_j is the receiver, choose a random bit as the value learned from the OT. Since the OT contains possible values of a_ib_j + a_jb_i + s_{i, j} and they are random, the random bit is equivalent.
• When P_j is the sender, choose s_{i, j} randomly and compute all 4 possible values following the protocol.

Lastly, for the output phase, the simulator has to simulate the message y_i from P_i. Since the final output y is known and y_j (j \neq i) is known, y_i can be computed from the simulator.

We see that the distribution of the values inside the simulator is identical to the view in the real protocol execution.

Beaver Triples

Beaver triple sharing is an offline optimization method for multiplication (AND) gates in the GMW protocol. Before actual computation, Beaver triples can be shared to speed up multiplication gates, reducing the running time in the online phase. Note that the overall complexity is the same.

Definition. A Beaver triple is a triple (x, y, z) such that z = xy.

Beaver Triple Sharing

When Beaver triples are shared, [x] = (x_1, x_2) and [y] = (y_1, y_2) are chosen so that


\tag{$\ast$}
z = z_1 + z _2 = (x_1 + x_2)(y_1 + y_2) = x_1y_1 + x_1y_2 + x_2y_1 + x_2y_2.

1. Each party P_i chooses random bits x_i, y_i. Now they must generate z_1, z_2 so that the values satisfy equation (\ast) above.
2. P_1 chooses a random bit s and computes all 4 possible values of s + x_1y_2 + x_2y_1.
3. P_1 and P_2 run a $1$-out-of-4 OT.
4. P_1 keeps z_1 = s + x_1y_1, P_2 keeps z_2 = (s + x_1y_2 + x_2y_1) + x_2y_2.

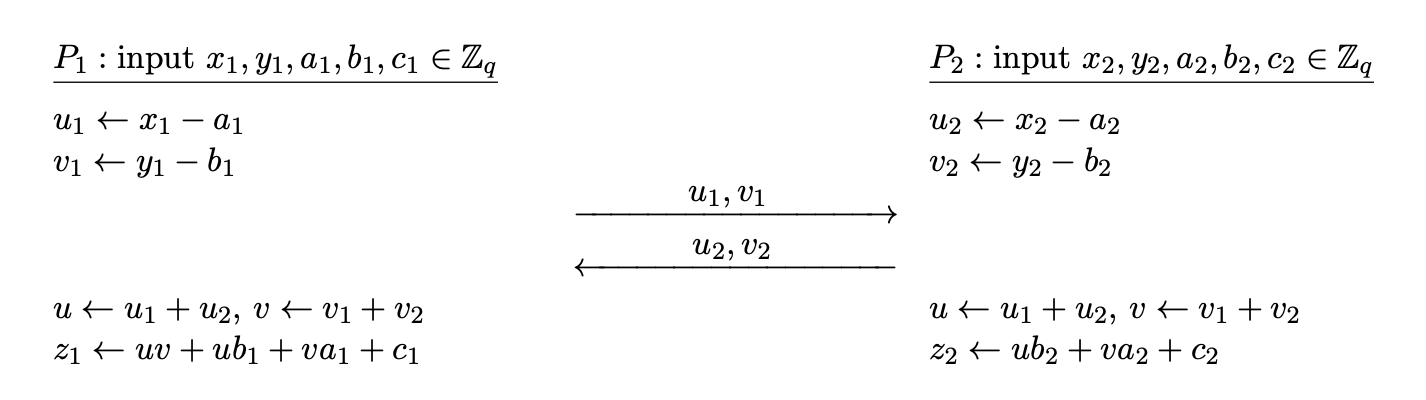

Indeed, z_1, z_2 are shares of z.² See also Exercise 23.5.³

Evaluating AND Gates with Beaver Triples

Now, in the actual computation of AND gates, proceed as follows.

Each P_i has a share of inputs a_i, b_i and a Beaver triple (x_i, y_i, z_i).

1. Each P_i computes u_i = a_i + x_i, v_i = b_i + y_i.
2. P_i shares u_i, v_i to P_{3-i} and receives u_{3-i}, v_{3-i} from P_{3-i}.
3. Each party now can compute u = u_1 + u_2, v = v_1 + v_2.
4. P_1 computes c_1 = uv + uy_1 + vx_1 + z_1, P_2 computes c_2 = uy_2 + vx_2 + z_2.

Note that

\begin{aligned}
c = c_1 + c_2 &= uv + u(y_1 + y_2) + v(x_1 + x_2) + (z_1 + z_2) \\
&= uv + uy + vx + xy \qquad (\because z = xy)  \\
&= u(v + y) + x(v + y) \\
&= (u + x)(v + y) = ab
\end{aligned}

The last equality comes from the fact that u = a + x and v = b+y from step 1. The equation was derived from the following observation.

c = ab = (a + x)(b + y) - x(b + y) - y(a + x) + xy.

Substitute u = a +x and v = b + y, since z = xy, we have

c = uv - xv - yu + z.

Thus

[c] = uv - [x]v - [y]u + [z],

and uv is public, so any party can include it in its share.

Also note that u_i, v_i does not reveal any information about x_i, y_i. Essentially, they are one-time pad encryptions of x_i and y_i since a_i, b_i were chosen randomly. No need for OTs during actual computation.

Reusing Beaver Triples?

Beaver triples are to be used only once! If u_1 = a_1 + x_1 and u_1' = a_1' + x_1, then u_1 + u_1' = a_1 + a_1', revealing information about a_1 + a_1'.

Thus, before the online phase, a huge amount of Beaver triples are shared to speed up the computation. This can be done efficiently using OT extension described below.

Comparison of Yao and GMW

Protocol	Yao	GMW
Metaphor	Apple: bite-by-bite	Orange: peel and eat
Pros	Constant round complexity	Circuit evaluation is simple
Cons	Requires symmetric cipher in the online phase	High overhead in AND gates
Good In	High latency networks	Low latency networks
Round Complexity	\mc{O}(1)	Depends on circuit depth. n OTs per AND gates per party.

Yao's protocol computes gates bite-by-bite, whereas GMW protocol is peel-and-eat. Most of the effort is required in the preprocessing phase, by sharing many Beaver triples, but the evaluation phase is easy.

OT Extension

Both Yao's and GMW protocol use OTs. Depending on the computation, one may end up performing thousands of OTs, which can be inefficient.

There is a technique called OT extension, that allows us to obtain many OT instances from a small number of OT instances. OT extension only uses small number of base OTs, and uses symmetric cipher to extend it to many OTs.

Protocol Description

This protocol will extend n OTs to m OTs, where m \gg n.

• Sender has inputs \paren{x_i^0, x_i^1} for i = 1, \dots, m.
• Receiver has choice vector \sigma = (\sigma_1, \dots, \sigma_m) \in \braces{0, 1}^m.
  • After the protocol, the receiver will get x_i^{\sigma_i} for i = 1, \dots, m.

First phase.

1. The receiver samples n random strings T_1, \dots, T_n \la \braces{0, 1}^m of length m.
2. The receiver prepares pairs \paren{T_i, T_i \oplus \sigma} for i = 1, \dots, n and plays sender in base OT.
3. The sender chooses random s = (s_1, \dots, s_n) \in \braces{0, 1}^n.
4. The sender plays receiver in base OT with input s_i for i = 1, \dots, n.

In the first phase, the roles are temporarily switched.

• The receiver chose n random $m$-bit vectors, now has a m\times n bit matrix T.
• For the $i$-th base OT, the receiver inputs T_i or T_i \oplus \sigma. Therefore, if s_i = 0, the sender gets T_i. If s_i = 1, then sender gets T_i \oplus \sigma.
• Suppose that the sender gets Q_i \in \braces{0, 1}^m in the $i$-th base OT. The sender will also have a m \times n bit matrix Q.

Q_i = \begin{cases} T_i  & (s_i = 0)  \\
	T_i \oplus \sigma  & (s_i = 1).
\end{cases}

Now consider each row separately! Let A[k] be the $k$-th row of matrix A.

If \sigma_j = 0, the XOR operation in T_i \oplus \sigma has no effect on the $j$-th element (row), so the $j$-th element of T_i \oplus \sigma and T_i are the same. Thus, we have Q[j] = T[j].

On the other hand, suppose that \sigma_j = 1 and consider each element of Q[j]. The $i$-th element is the $j$-th element of Q_i. If s_i = 0, then Q_i = T_i, so the $j$-th element (row) is the same as the $j$-th element of T_i. If s_i = 1, then Q_i = T_i \oplus \sigma, so the $j$-th element is flipped. Thus, Q[j] = T[j] \oplus s.

Q[j] = \begin{cases} T[j] & (\sigma_j = 0)  \\
T[j] \oplus s & (\sigma_j = 1).
\end{cases}

Second phase. To perform the $j$-th transfer (j = 1, \dots, m),

1. The sender sends y_j^0 = H(j, Q[j]) \oplus x_j^0 and y_j^1 = H(j, Q[j] \oplus s) \oplus x_j^1.
2. The receiver computes H(j, T[j]) \oplus y_j^{\sigma_j}.

If \sigma_j = 0, then the sender gets

H(j, T[j]) \oplus y_j^0 = H(j, T[j]) \oplus H(j, Q[j]) \oplus x_j^0 = x_j^0.

If \sigma_j = 1,

H(j, T[j]) \oplus y_j^1 = H(j, T[j]) \oplus H(j, Q[j] \oplus s) \oplus x_j^1 = x_j^1.

We have just shown correctness.

Security Proof of OT Extension

Intuitively, the sender receives either T_i or T_i \oplus \sigma. But T_i are chosen randomly, so it hides \sigma, revealing no information.

As for the receiver, the values (x_j^0, x_j^1) are masked by a hash function, namely H(j, Q[j]) and H(j, Q[j] \oplus s). The receiver can compute H(j, T[j]), which equals only one of them but since receiver has no information about s, prohibiting the receiver from computing the other mask.

Performance of OT Extension

The extension technique allows us to run n base OT instances to obtain m OT instances. For each of the m OT transfers, only a few hash operations are required, resulting in very efficient OT.

One may concern that we have to send a lot of information for each of the n OT instances, since we have to send m bit data for each OT. But this of not much concern. For example, if we used OT based on ElGamal, we can choose primes large enough > 2^m to handle $m$-bit data.

Hence, with OT extensions, we can perform millions of OTs efficiently, which can be used especially for computing many Beaver triples during preprocessing.

---

1. Intuitively, it may seem that proving security for n-1 corrupted parties would be the hardest. However, security for n-1 corrupted parties does not imply security for n-2 corrupted parties, in general. ↩︎

2. There is a variant of sharing Beaver triples, where a dealer generates all x_i, y_i, z_i and gives them to each party. ↩︎

3. A Graduate Course in Applied Cryptography. ↩︎
